Product model：PEZ060-L1

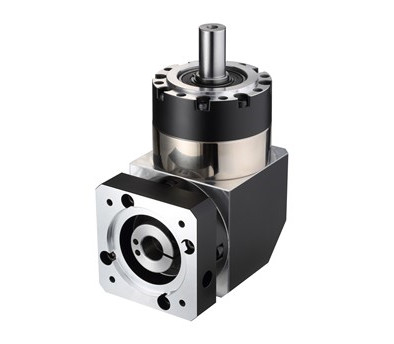

Product name：Planetary Reducer
Specification range: 60-180
Cost-effective, light and easy to install
The gear quenching hardness reaches 62 degrees, and the tooth surface is ground
Can be equipped with any brand of servo and stepper motor
The surface is treated with baking paint to ensure that the appearance does not change color and rust


Model
 Ratio Rated Torque（Nm） Match
60#  φ14
PEZ060-L1-3 4 27 60#
PEZ060-L1-4 4 40 60#
PEZ060-L1-5 5 40 60#
PEZ060-L1-7 7 34 60#
PEZ060-L1-10 10 16 60#
57#    φ6.35
PEZ060-L1-3-57-6.35x30 3 27 57#
PEZ060-L1-4-57-6.35x31 4 40 57#
PEZ060-L1-5-57-6.35x31 5 40 57#
PEZ060-L1-7-57-6.35x31 7 34 57#
PEZ060-L1-10-57-6.35x31 10 16 57#
57#  φ8
PEZ060-L1-3-57-8x30 3 27 57#
PEZ060-L1-4-57-8x31 4 40 57#
PEZ060-L1-5-57-8x31 5 40 57#
PEZ060-L1-7-57-8x31 7 34 57#
PEZ060-L1-10-57-8x31 10 16 57#
60#  φ8
PEZ060-L1-3-60-8x30 3 27 60#
PEZ060-L1-4-60-8x31 4 40 60#
PEZ060-L1-5-60-8x31 5 40 60#
PEZ060-L1-7-60-8x31 7 34 60#
PEZ060-L1-10-60-8x31 10 16 60#
60#   φ10
PEZ060-L1-3-60-10x30 3 27 60#
PEZ060-L1-4-60-10x31 4 40 60#
PEZ060-L1-5-60-10x31 5 40 60#
PEZ060-L1-7-60-10x31 7 34 60#
PEZ060-L1-10-60-10x31 10 16 60#

Model
Catalog
Manual
Connect Protocol

Drawing

2D 3D
Datasheet
Debug
Software
Certificate
PEZ060-L1
Click to download
